Data logger MX-2

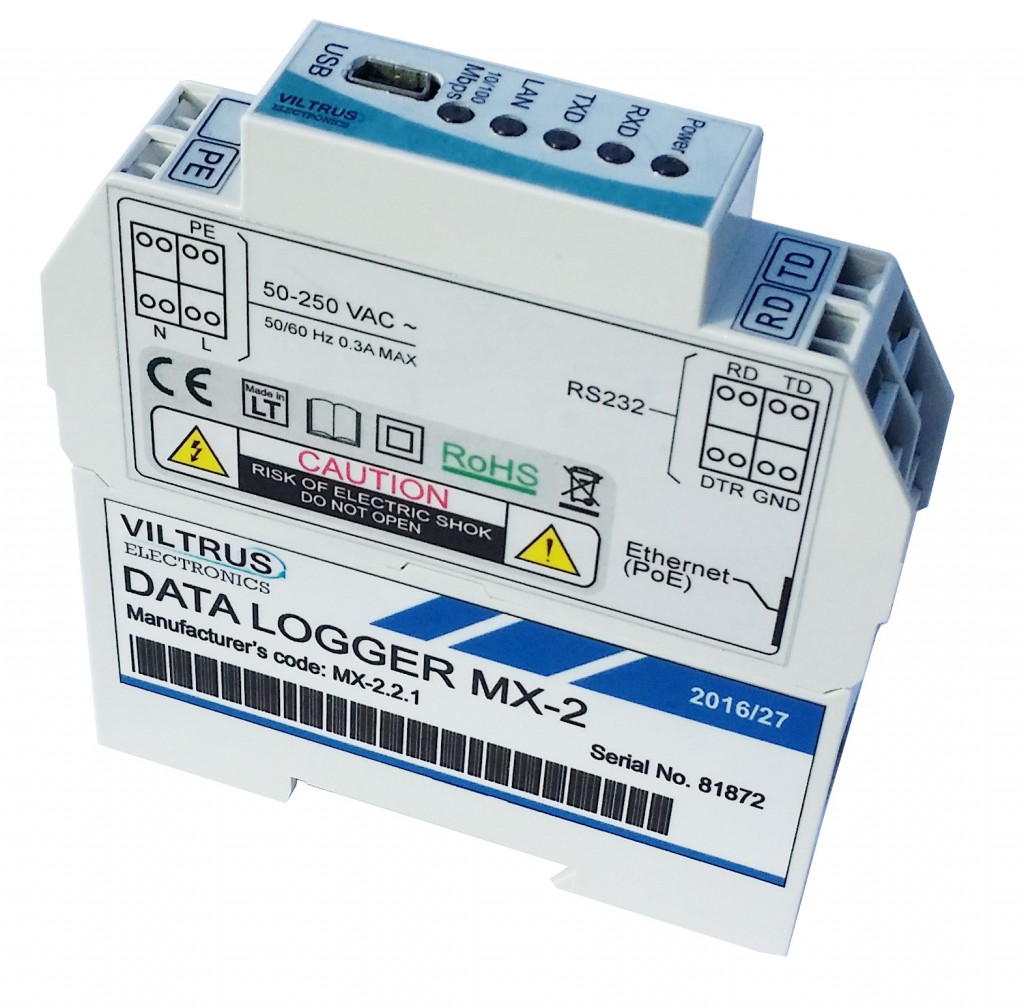

DATA LOGGER MX-2

MX-2 is Ethernet Data logger with Modbus compatibility

MX-2 data logger is designed for data reading from meters (electricity, heat, water, gas and other), storing to local archive and data exchange between RS232/RS485 and Ethernet.


Technical Features

– Possibility to chose interfaces.
– Reading data from any kind of meters (water, electricity, heat, gas, cooling …)
– Supported protocols: Modbus RTU, Modbus TCP/IP, IP, ICMP, UDP, TCP, DHCP, PPP, ARP, SNTP, IEC60870-5-104:2000, DynDNS and transparent.
– Supported interfaces: RS232, RS485, Ethernet, USB
– Transparent controller data exchange between serial RS232/RS485 (Modbus RTU) and Ethernet (Modbus TCP)
– Additional special transparent protocol data transfer.
– Galvanically isolated interfaces and power supply.

konfigurator

Did you know?

 – MX-2 dedicated for electricity, water, heat and gas metering via RS232 / RS485 (Modbus)

Application possibilities

Data logger MX-2 is dedicated for real time logging and analyzing of data. Using Ethernet, logger sends data to remote users / server. Data Logger MX-2 can also communicate with other controllers and sensors. Device has wide range of optional interfaces and protocols and can read any kind of meters, controllers and sensors equipped with standard protocols. Perfect for telemetry/monitoring, control and smart metering.

viltrus water metering

Water metering

viltrus electricity monitoring

Electricity metering

viltrus gas metering

Gas metering

heating substation viltrus

Heat substation metering

commercial metering

Commercial metering

Device adjustment to client’s needs

If client needs custom made application or special functions, our R&D department ready to help. We can adjust our devices, include special protocols or interfaces to meet client application’s needs. Also we are ready to adjust our device for working with various meters, flow meters (even exotic ones). If you are not sure if our device can satisfy your needs, feel free to contact us anytime.

Application examples

MX-2 collects the data from meters / sensors and controllers and sends the data to local or remote users using Modbus protocol via Ethernet. There is so many ways to use our MX-2. Starting from smart metering, heating substation metering to data acquisition from various flow meters.

MX2 data logger gateway application example
DescriptionData Logger MX-2 technical specifications
CPUCortex M3
Flasharchive storage up to 8 MB, independent data storage without power about 5 years
RS232distance up to 15 m, speed up to 19,2Kbit/s
RS485distance up to 1,2 km, max 32 transivers, speed up to 19.2 Kbits/s
Ethernet10/100 Mbps, (RJ45), distance up to 100 m
USBmini USB type B, ver. 2,0
ProtocolsModbus RTU, Modbus TCP/IP, IP, ICMP, UDP, TCP, DHCP, PPP, ARP, SNTP, IEC60870-5-104:2000, DynDNS
Power supply50-250 VAC 50-60Hz, 50-250 VDC or PoE
Capacity300mA MAX
Dimensions18x85x97 mm
Weight105 g
Mounting typeon DIN rail
Protection typeIP20
Operating temperature-25 to 60oC
CertificationsCE, RoHS
Warranty period2 years
