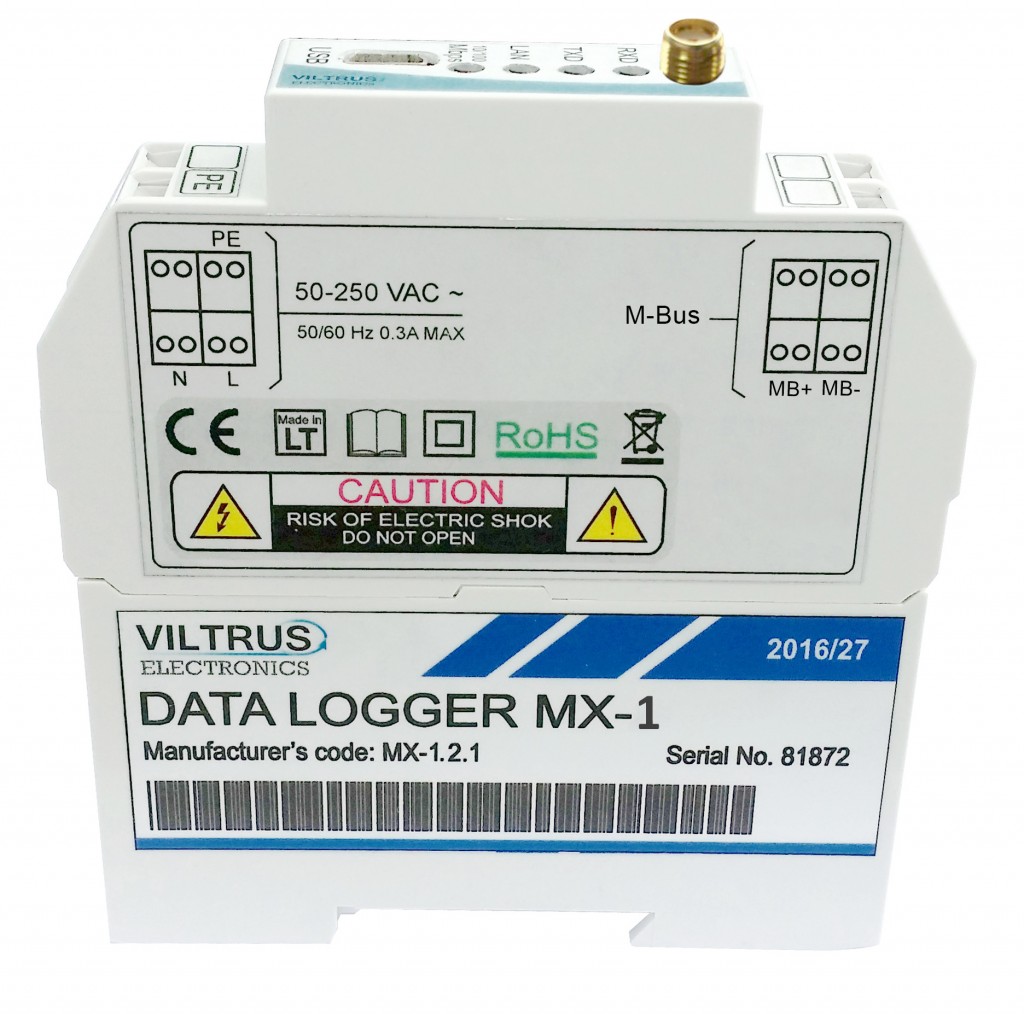

Data logger MX-1

MX-1 is GPRS Data logger with M-Bus compatibility

MX-1 designed for data reading from meters (electricity, heat, water, gas and other) with M-Bus interface (up to 25 any M-Bus devices) or Modbus (RS485) and storing/exchanging data between device and client’s software through GSM/GPRS

Technical Features

 – Reading data from any kind of meters (water, electricity, heat, gas, cooling …) via M-Bus or Modbus
 – Supported protocols: Modbus RTU, Modbus TCP/IP, MQTT, M-Bus, IP, ICMP, UDP, TCP, DHCP, PPP, ARP, SNTP, IEC60870-5-104:200 and transparent
 – Supported interfaces: M-Bus or Modbus (RS485), GSM/GPRS, USB
 – Remote communication and updates through GSM/GPRS
 – Memory expansion: up to 8 GB using micro SD card
 – Galvanically isolated interfaces and power supply
 – Power supply: 50-250VAC (50-60Hz)
 – SMS sending for alarm events
 – Additional special transparent protocol data transfer
 – Mounting type: on DIN rail
 – MQTT internet of things (IoT) protocol


Did you know?
– MX-1 can read any kind of M-Bus meters and send data directly to server / user via GPRS or log data in SD card.

Application possibilities

Data logger MX-1 is dedicated for real time logging and analyzing of data. Using GPRS/GSM, logger sends data to remote users / server.  Perfect for telemetry/monitoring and smart metering. For transparent mode use sim card with static ip.

viltrus water metering

Water metering

viltrus sensor monitoring

Sensor monitoring

viltrus electricity monitoring

Electricity metering

viltrus solar monitoring

Renewable energy monitoring

viltrus gas metering

Gas metering

viltrus industrial monitoring

Industrial metering and controll

heating substation viltrus

Heat substation metering

Agro monitoring

Agro monitoring

smart home

Smart house

commercial metering

Commercial metering

Device adjustment to client’s needs

If client needs custom made application or special functions, our R&D department ready to help. We can adjust our devices, include special protocols or interfaces to meet client application’s needs. Also we are ready to adjust our device for working with various meters, flow meters (even exotic ones). If you are not sure if our device can satisfy your needs, feel free to contact us anytime.

We can confirm, that our MX-1 can read: Kamstrup, Sensus, Danfoss, L G, Itron, Diehl, Apataor and other manufacturer’s meters.

Application examples

Below indicated few samples how MX-1 collects the data from meters / sensors and sends the data to local or remote users using Modbus protocol via GPRS / GSM. There is so many ways to use our MX-1. Starting from smart metering, heating substation metering, data acquisition from temperature, pressure sensors, data acquisition from weather stations and sensors, agro monitoring, chemical monitoring and telemetry, to smart house telemetry, and scientific device monitoring and telemetry.

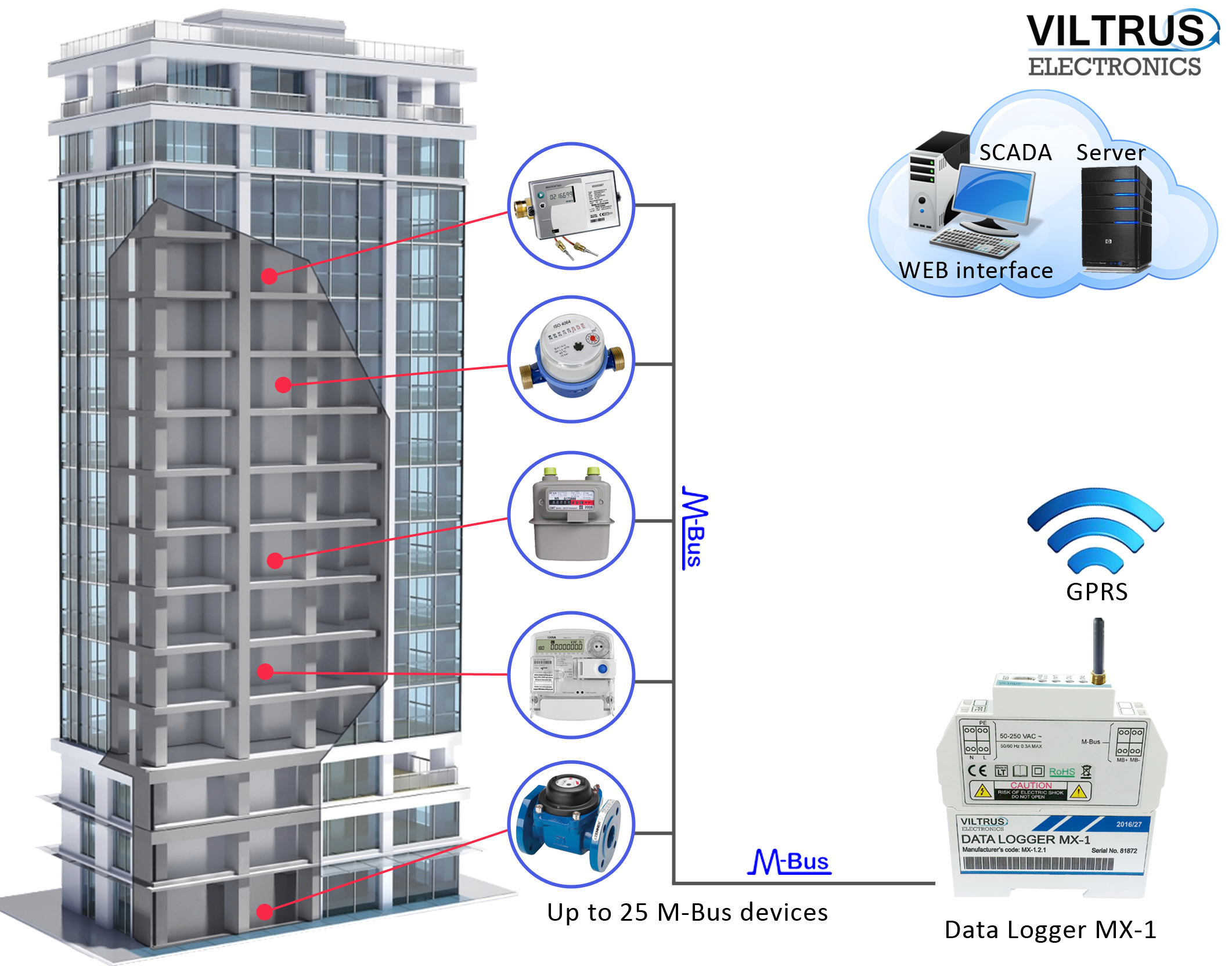

MX1 data logger gateway application example
DescriptionData Logger MX-1 technical specifications
CPUARM Cortex M4
Flasharchive storage up to 8 MB, independent data storage without power about 5 years
External memoryup to 8 GB micro SD card
GSM/GPRS4 band 850/900/1800/1900 MHz
M-Busup to 25 M-Bus devices
USBmini USB type B, ver. 2,0
ProtocolsModbus RTU, Modbus TCP/IP, IP, ICMP, UDP, TCP, DHCP, PPP, ARP, SNTP
Power supply AC50-250V ~ 50/60Hz
Capacity300 mA MAX
Over-voltage protection>1000V
Power consumption< 9VA
Dimensions18x85x97 mm
Weight105 g
Mounting typeon DIN rail
Protection typeIP20
Operating temperature-25 to 60oC
Real time clockYes
CertificationsCE, RoHS
Warranty period2 years
